4Terrain Ultimate Clutch Kit for Toyota Dyna BU61 100 140 162 172 Coaster BB40
Description

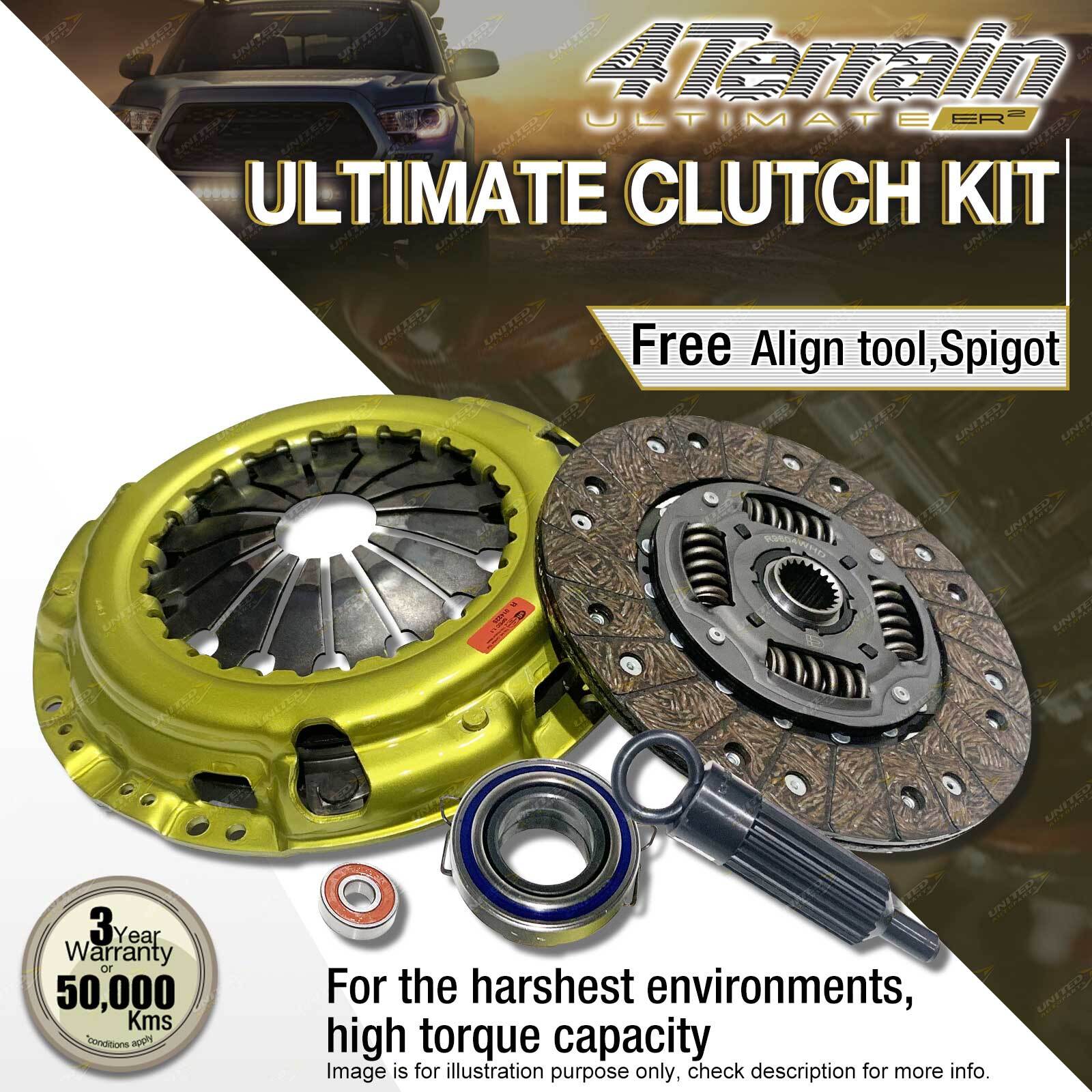

Contents : 4Terrain Ultimate Clutch Kit
Clutch Kit Include :
4TERRAIN ER2 Heavy Duty Cover Assembly
4Terrain Aramide Dual Friction High Torque Clutch Plate
Release bearing
Clutch Alignment Tool
Spigot Bearing
Parameter :
Clutch plate dimensions (mm): 275 x 21T x 29.0
Flywheel: +0.5
Spigot: RSB502
Align tool: CAT180
Suit : Toyota Dyna BU61 100 140 162 172 Coaster BB40
Features
Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.
Copyright © 2014 - 2023 United Autoparts. All rights reserved.
Suit :
Make | Model/Submodel | Engine | Series | Year | Notes |
---|---|---|---|---|---|
Toyota | Coaster BB40R | 3.4 Ltr Diesel | 3B | 01/1993-12/1996 | |
Toyota | Dyna BU100 | 3.4 Ltr | 13B | 05/1995-05/2003 | |
Toyota | Dyna BU100 | 3.4 Ltr | 3B | 05/1995-04/2003 | |
Toyota | Dyna BU102 | 4.1 Ltr | 15B | 05/1995-2019 | |
Toyota | Dyna BU112 | 4.1 Ltr | 15B | 05/1995-2019 | |
Toyota | Dyna BU122 | 4.1 Ltr | 15B | 05/1995-2019 | |
Toyota | Dyna BU132 | 4.1 Ltr | 15B | 05/1995-2019 | |
Toyota | Dyna BU140 | 3.4 Ltr | 3B | 05/1995-2019 | |
Toyota | Dyna BU142 | 4.1 Ltr | 15B | 05/1995-2019 | |
Toyota | Dyna BU162 | 4.1 Ltr | 15B | 05/1995-2019 | |
Toyota | Dyna BU172 | 4.1 Ltr | 15B | 05/1995-2019 | |
Toyota | Dyna BU182 | 4.1 Ltr | 15B | 05/1995-2019 | |
Toyota | Dyna BU202 | 4.1 Ltr | 15B | 05/1995-2019 | |
Toyota | Dyna BU212 | 4.1 Ltr | 15B | 05/1995-2019 | |
Toyota | Dyna BU222 | 4.1 Ltr | 15B | 05/1995-2019 | |
Toyota | Dyna BU306 | 3.7 Ltr Diesel | 4B | 01/1999-12/2003 | Pressed metal fork |
Toyota | Dyna BU61 | 3.0 Ltr | 11B | 10/1989-01/1994 | Pressed metal fork |
Toyota | Dyna BU63 | 3.0 Ltr | 11B | 10/1989-01/1994 | Pressed metal fork |
Toyota | Dyna BU85 | 3.4 Ltr | 13B | 01/1991-12/1994 | Pressed metal fork |
Toyota | Dyna BU87 | 3.7 Ltr | 14B | 10/1989-12/1994 | Pressed metal fork |
Toyota | Dyna BU88 | 3.7 Ltr | 14B | 10/1989-12/1994 | Pressed metal fork |
1. 4 Terrain Ultimate Clutch Kit
Used By Defence Forces Around The World.
4Terrain Ultimate Features A Two Stage Friction Material Clutch Disc Specifically Engineered For Off Road Driving ,or for the harshest environments where high torque capacity is essential.
2.Product Advantage

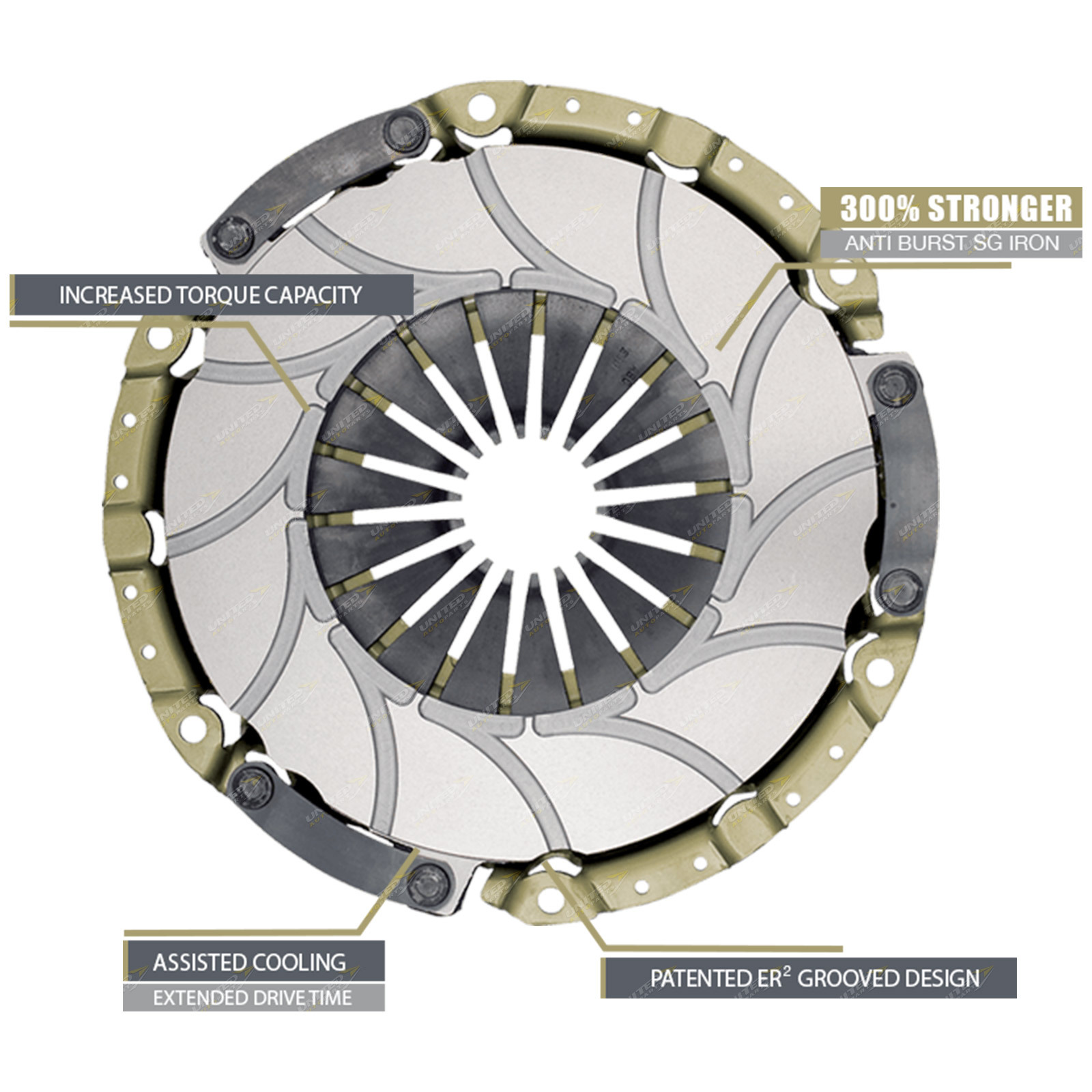

4T Ultimate with Patented* ER2 Groove Design has many features which make the product unique. It is comprised of a cover assembly, clutch disc and release bearing (Some kits also include a solid replacement flywheel or DMR). The cover assembly incorporates a premium corrosion resistant surface finish, which exhibits excellent resistance to oxidation over a prolonged period. In addition, the clutch pressure plate incorporates 4T Ultimate's exclusive ER2 design technology.
The cover assembly's pressure plate is manufactured from Spheroidal Graphite casting material and has a yield strength some 300% higher than standard castings. The material's microstructure also improves heat dispersion. The cover assembly incorporates greater clamp load than a standard cover assembly. This translates to more torque capacity.
3.Clutch Kit Benifit
All 4Terrain Products Engineered To The Highest Standard Featuring:
Patented Grooved Pressure Plate To Increase Torque Capacity While Aiding Cooling
Anti-Burst Sg Iron Pressure Plate, 300% Stronger
Clutch Disc Run Out Specification <0/5Mm For Smooth Engagement
Release Bearings Dynamically Tested To 1,500,000 Cycles At 1800C
4.Testify
Proven product, tested in the harshest conditions

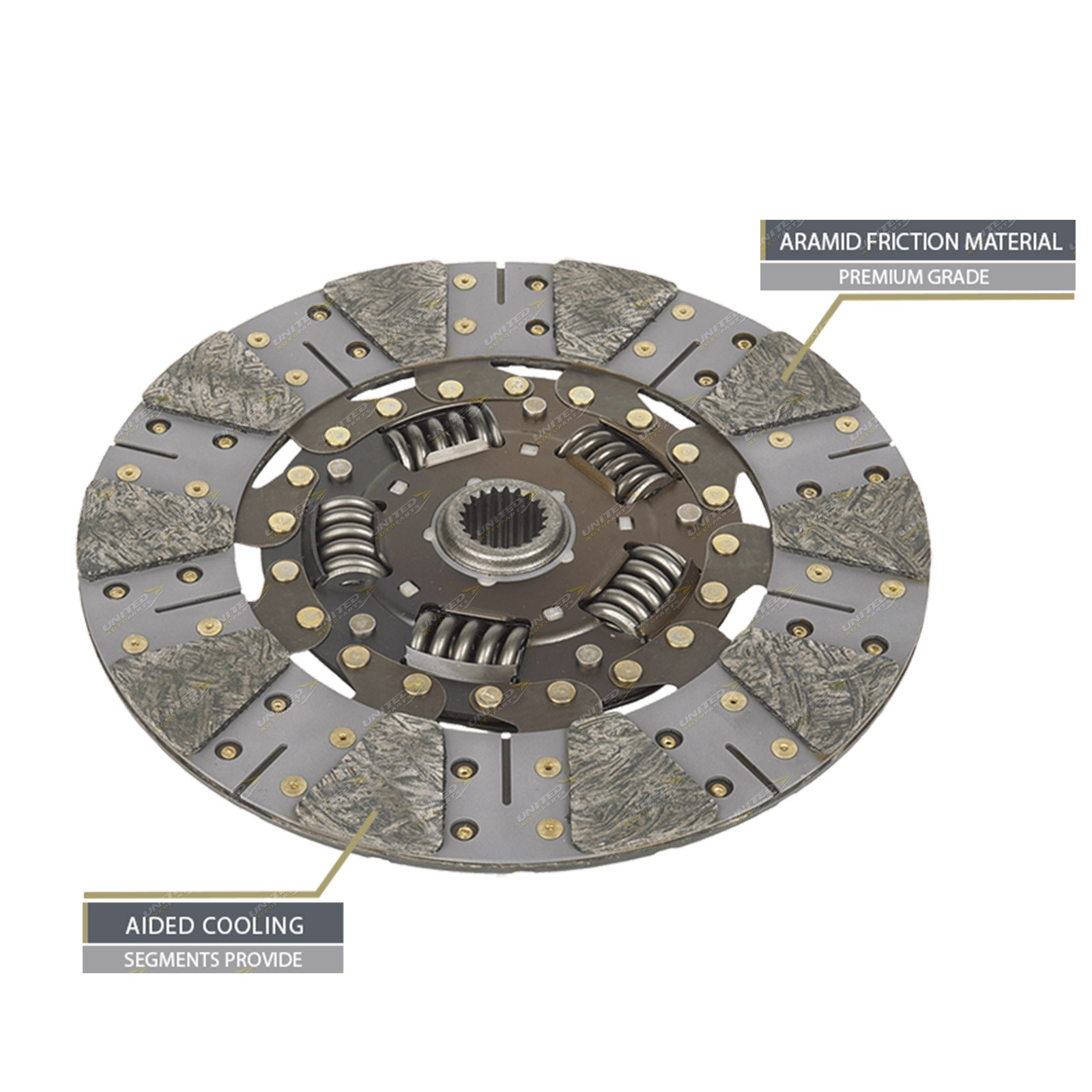

The kit's clutch disc has a unique flywheel side friction material. The Aramid friction material exhibits 50% less wear than a conventional clutch disc's friction material. This material also reduces the effects of clutch fade. Fade is the decline in the clutch system's ability to transmit torque as operating temperatures increase.

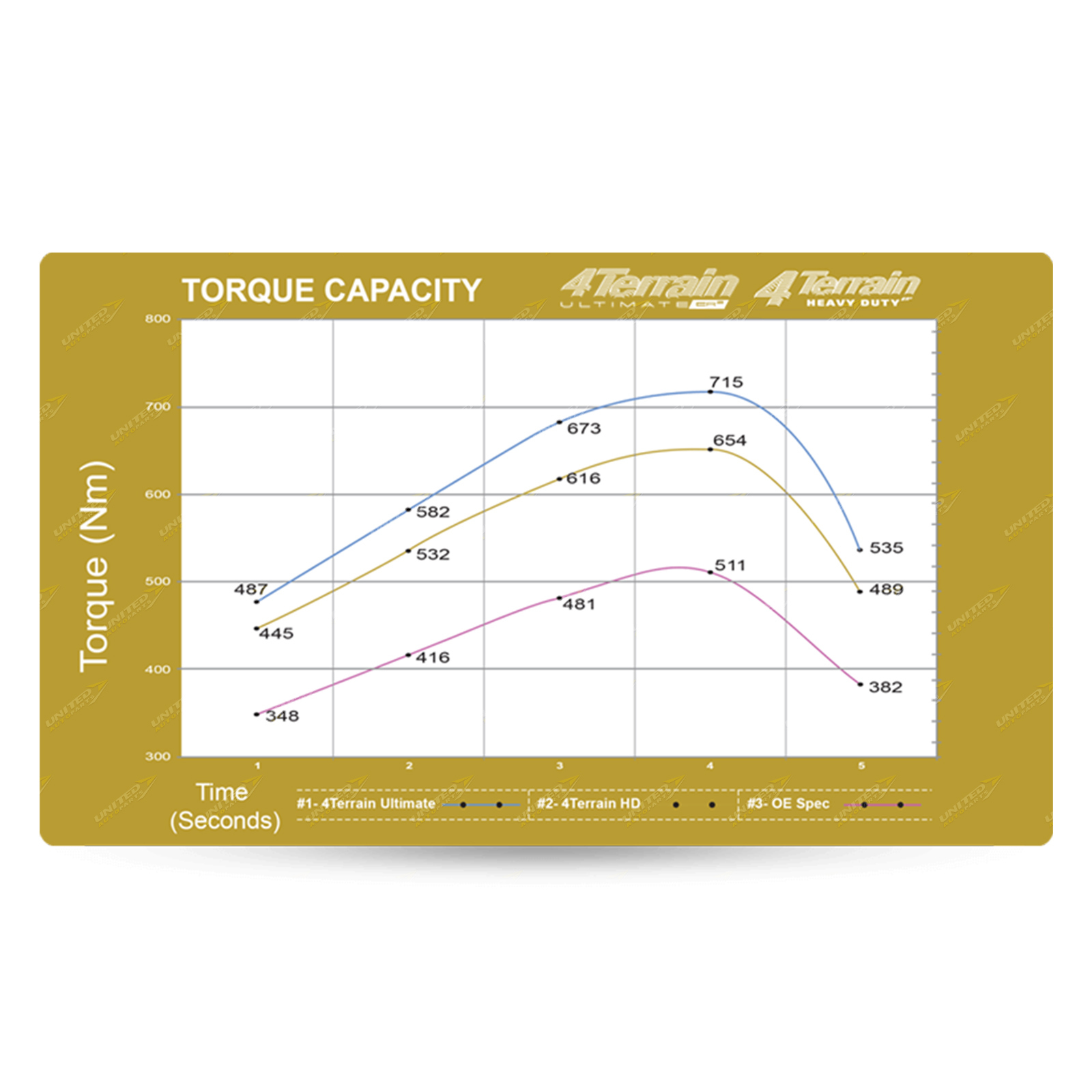

It also means that the clutch system is capable of transmitting up to 60% more torque than a standard Clutch Kit making it suitable for demanding conditions. This overall Torque Capacity increase has been achieved by higher Clamp Loads, increased Mean Effective Radius of the pressure plate, better cooling and higher coefficient of friction materials on the clutch disc.
5.About Clutch Industries
4Terrain is the speciality 4X4 performance brand of Clutch Industries (CI) which is a full service clutch manufacturer, manufacturing clutch kits, clutch cover assemblies, clutch plates and flywheels. With more than 60 years of Australian design, development and manufacturing experience, we have become the largest and most experienced clutch manufacturer in Australia. We are uniquely placed in terms of both experience and capabilities to provide the widest range of professionally engineered products in the market today.
4Terrain is known for its bold innovation, with an extensive Research and Development (R&D) department with highly experienced engineering and innovation capabilities enabling us to differentiate ourselves from competitors in both product and services. These qualities have meant that 4Terrain is used exclusively by a large number of defence forces around the world; proven performance in the harshest conditions.
Specifications
SKU | CI-4TerrainU-U1909-P0113 |
Brand | Clutch Industries |
Shipping Weight | 15.0000kg |
