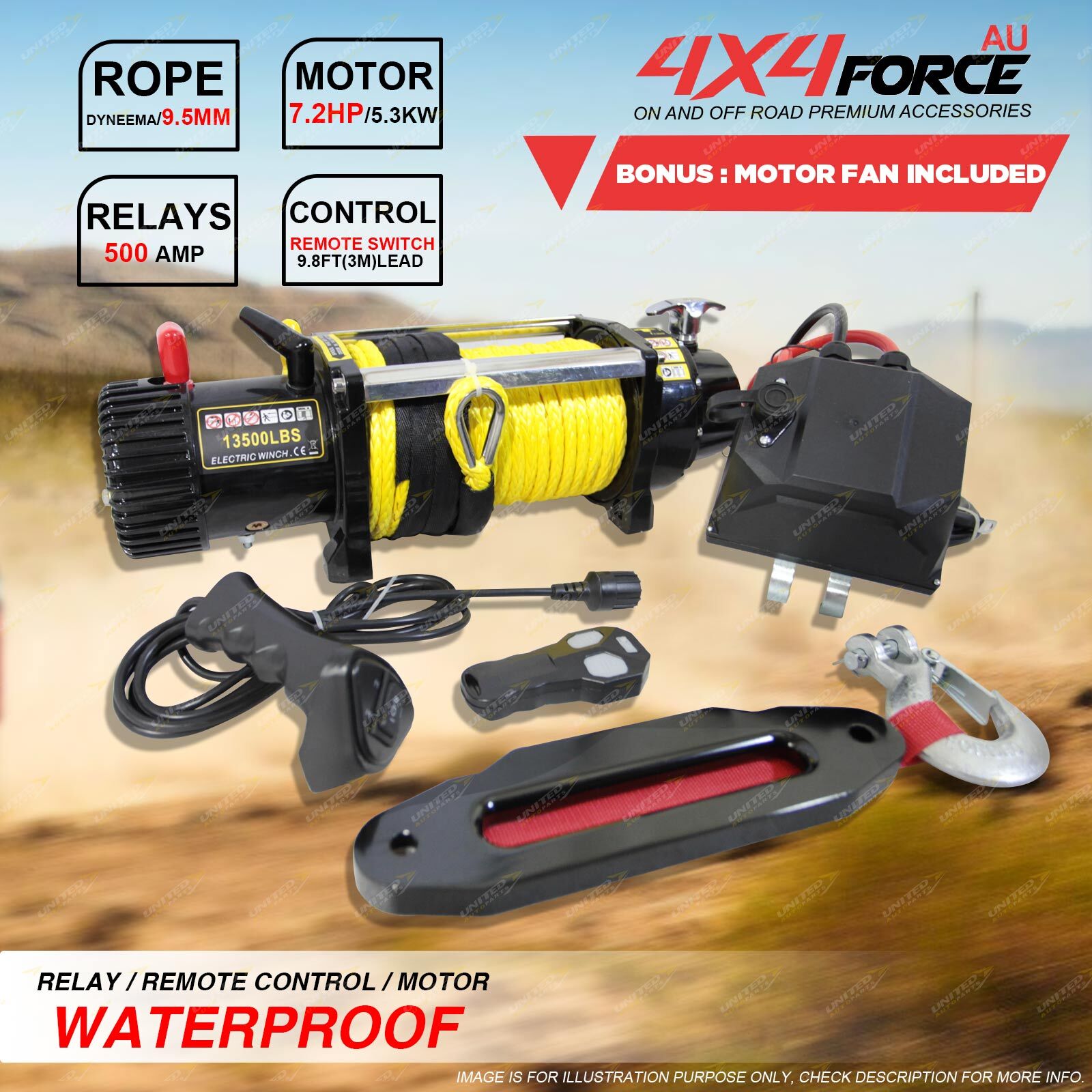

4x4Force 13500lbs 6123kgs 5.3KW/7.2hp Electric Recovery Winch Kit Dyneema Rope
Description
WINCH'S CLASSIFICATION AND FEATURES
13500LB WINCH SPECIFICATIONS
Rated Line Pull | 13500lbs (6123kgs) single line |
Motor | 5.3kw/7.2hp, series wound |
Control | Remote switch, 9.8ft(3m)lead |
Gear train | 3 Stage Planetary |
Gear train ratio | 265:1 |
Clutch | Sliding Ring Gear |
Braking Action | Automatic In-The-Drum |
Drum Size | Φ2.5"(64)mm x (8.8")223.5mm |
Cable | Φ9.3mm x 26m |
Overall Dimensions | 19.8"x6.3"x8.5"(529mm x 160mm x 217mm) |
Mounting Bolt Pattern | 255mm x 114mm Φ 11 |
Weight | N.W.25kg G.W.26Kg |
Packing Size | 615 x 355 x 265mm |
PULL. SPEED. AMPERES. VOLTS
Line pull lbs(kgs] | Line speed ft/min(m/min) | Current A |
0 | 24.9(7.6) | 70 |
1500(680) | 17.1(5.2) | 160 |
3500(1588) | 11.5(3.5) | 220 |
5500(2495) | 9.2(2.8) | 260 |
7500(3402) | 7.9(2.4) | 310 |
13500(6123) | 6.2(1.9) | 380 |
LINE PULL AND ROPE CAPACITY IN LAYER
Layer | Rated Line Pull lbs(kgs) | Total Rope on Drum ft(m) |
1 | 13500(6123) | 13(5) |
2 | 10200(4636) | 23(11) |
3 | 8705(3956) | 69(21) |
4 | 7310(3323) | 92(28) |
Features
Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.
Copyright © 2014 - 2023 United Autoparts. All rights reserved.
Please note at the moment our couriers can only deliver to business addresses, if you put a residential address we'll contact you for a business address for FREIGHT items. We can get it dropped at nearby depots for collection if that is more convenient.^lCalculated shipping price at checkout is for Metro Brisbane, Sydney, Melbourne ONLY. If you are out of these areas either contact us for freight quote or we will call you prior to shipping for the extra freight charge.
CONTENTS:
4X4FORCE Electricity 4WD Recovery Winch Kit
SUITS:
Universal
(*please advise year model- so we can make sure send you the right parts)
Specifications
SKU | 4X4FORCE-Winch-U1908-G01 |
Brand | 4X4FORCE |
