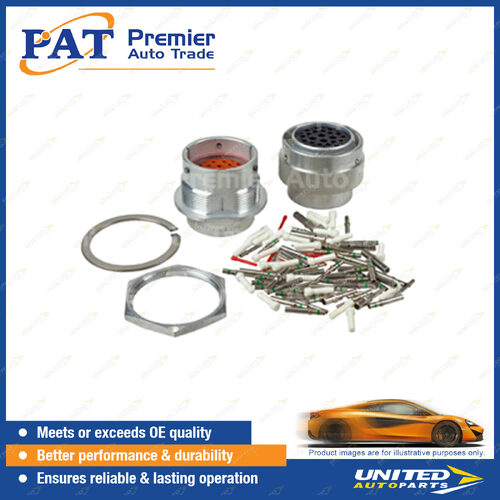

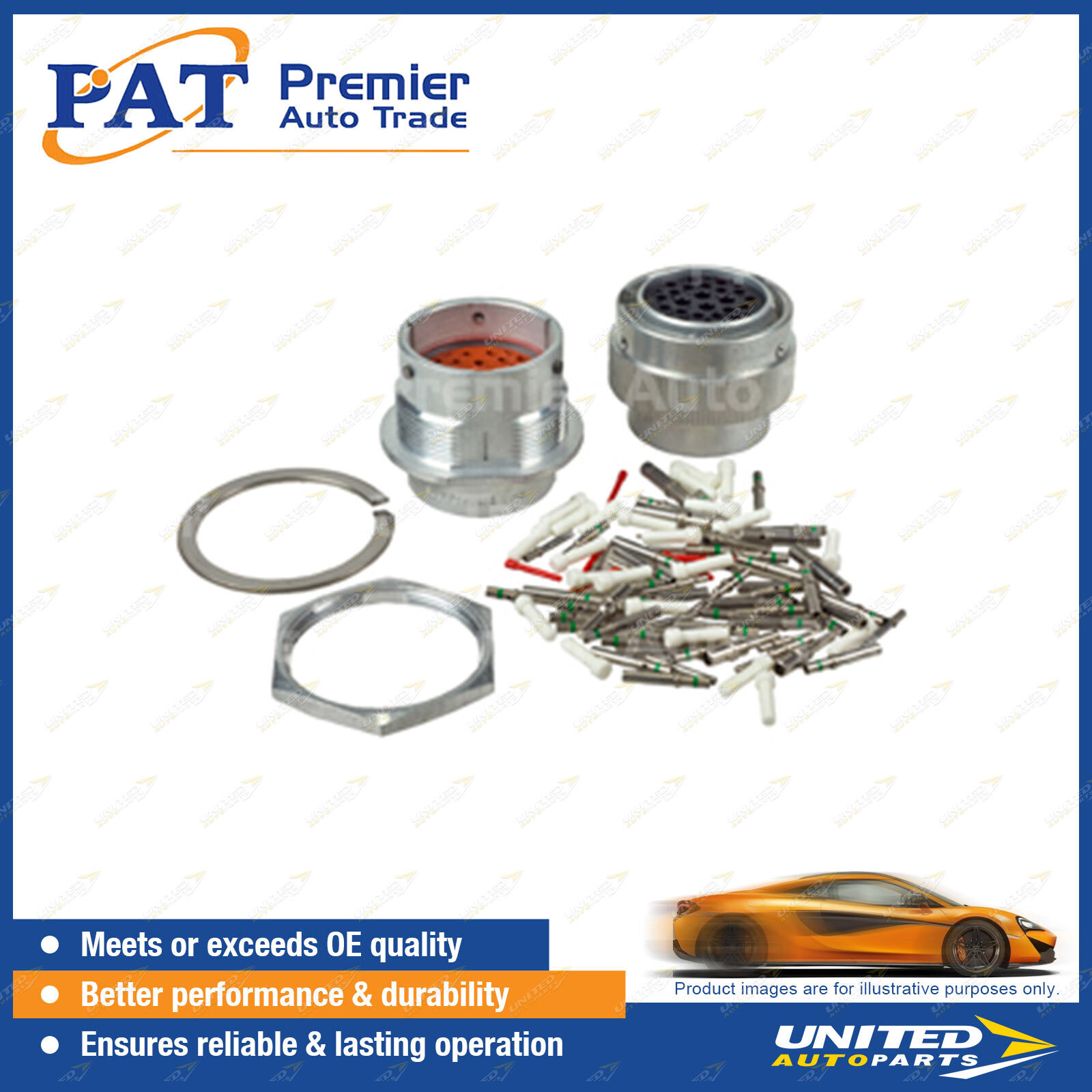

Deutsch HD30 Series 24-29 Connector Kit - Size 12 & 16 & 20 Contacts

Calculate Shipping

Local Pickup - $0.00
Pickup from Sydney Warehouse

Australia Post-Eparcel - $0.00
Australia Post Parcel Post

Australia Express Post - $0.00

Description

Shell size 24. 4 x Size 12 Contacts, 19 x Size 16 Contacts and 6 x Size 20 Contacts

Blue Ring Extra Thin Wire Seal. For use with Extra Thin Wall Wire (Recommended O.D of 2.46-4.01mm for Size 12, 1.35-3.05mm for Size 16 and 1.02-2.41mm for Size 20)

Can be used with thicker wall wire, but some assembly grease must be used

Mounting hole diameter - 43mm

Specifications :

Series : HD30

Housing : Aluminium
Seal : Silicone Rubber
Shock : 50G
Vibration : 20G rms 10 - 2000Hz
Operating Temperature : -55°C to 125°C

Size 12 Contacts

Wire Size : 12-14 AWG (2.0-3.0 mm2)
Recommended Strip Length : 5.6-7.2mm
Current Rating : 25A at 125°C

Size 16 Contacts

Wire Size : 14 AWG (1.0-2.0mm2)
Recommended Strip Length : 6.4-8.0mm
Current Rating : 13A at 125°C

Size 20 Contacts

Wire Size : 20 AWG (0.2-0.5mm2)
Recommended Strip Length : 4.0-5.5mm
Current Rating : 7.5A at 125°C

For over 20 years, Premier Auto Trade has been distributing products throughout Australia, and has developed a loyal customer base in the Australian aftermarket via its reputable network of specialist resellers, national distributors, and leading automotive retail groups.

Premier Auto Trade prides itself on the high quality products they supply. In order to protect your valuable reputation Premier Auto Trade supply only the best in EFI, Engine management and Service Components, from the world's leading automotive parts manufacturers including Delphi, Bosch, Pierburg, Denso, Continental, Walker Products, Walbro, NTK, Hitachi, Bremi, TE Automotive, Hella, Airtex, Intermotor, FAE, TI Automotive and Valeo.

Features

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.
Copyright © 2014 - 2023 United Autoparts. All rights reserved.

Brand : Deutsch

Contents : 1 x HD30 Series 24-29 Connector Kit
