Mantic Clutch Kit & SMF for Holden Commodore VT VU VX VY VZ Crewman Monaro V2 VZ

Calculate Shipping

Local Pickup - $0.00
Pickup from Sydney Warehouse

Australia Post-Eparcel - $0.00
Australia Post Parcel Post

Australia Express Post - $0.00

Description

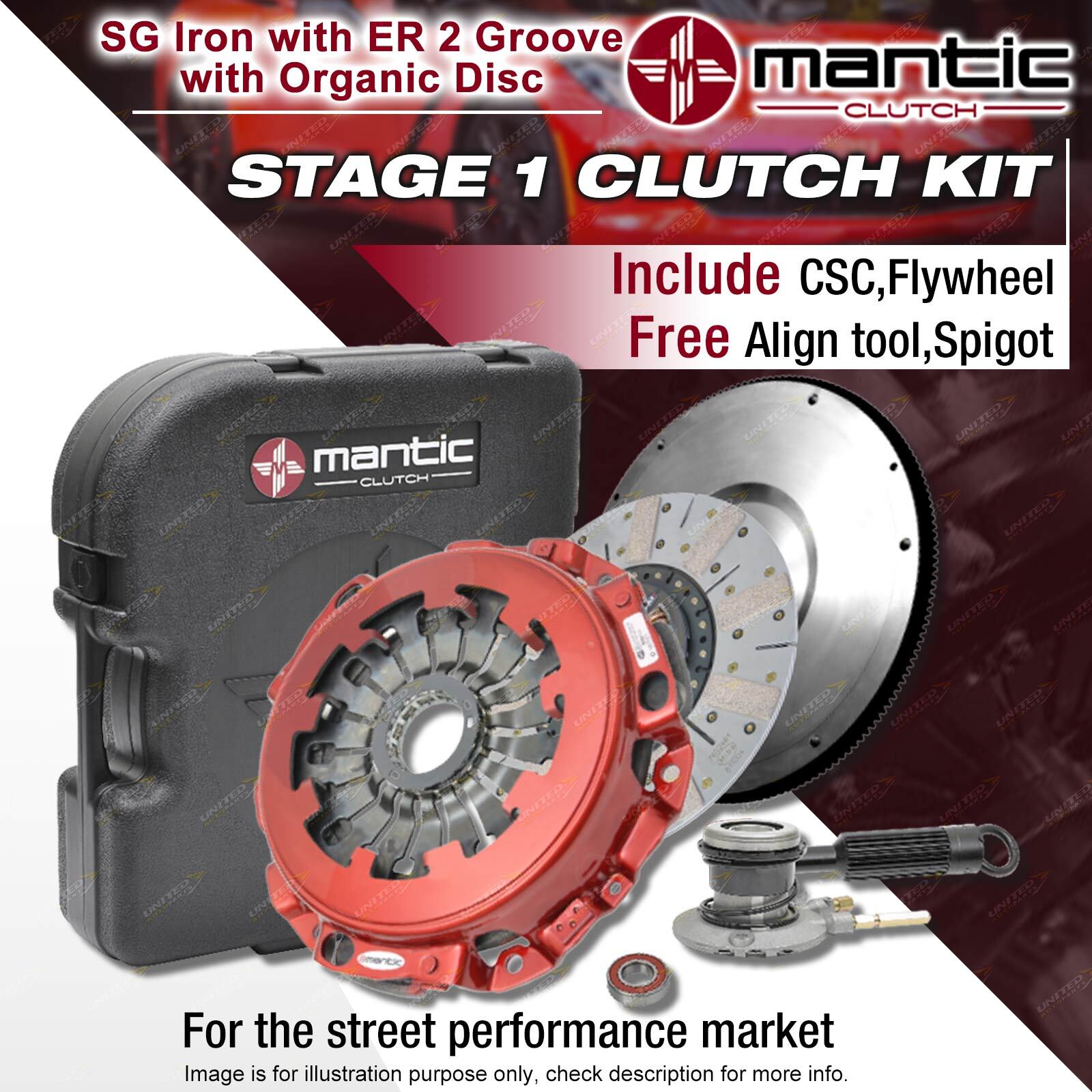

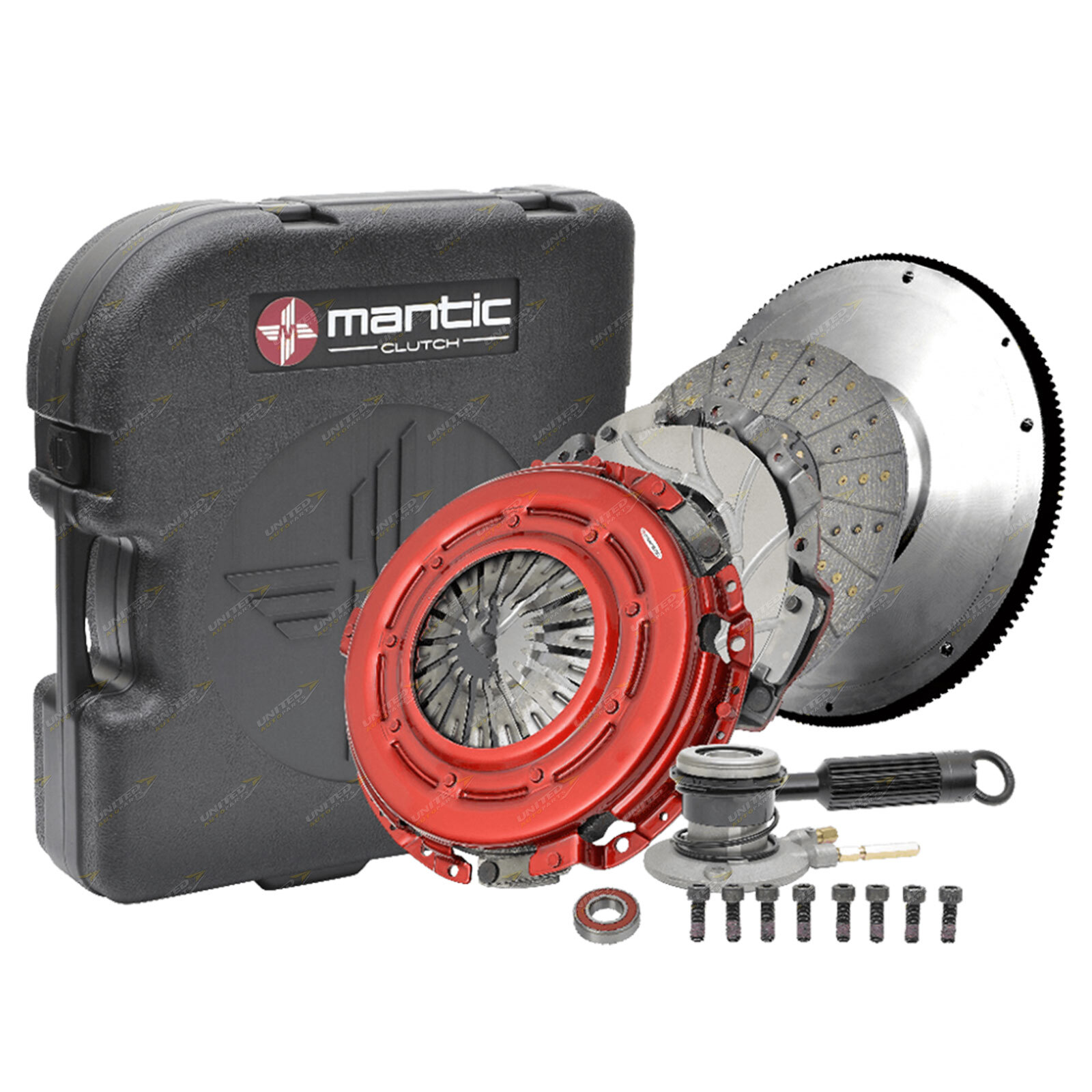

Contents : Mantic Stage 1 Clutch Kit

Clutch Kit Include :
MANTIC ER2 Heavy Duty Cover Assembly

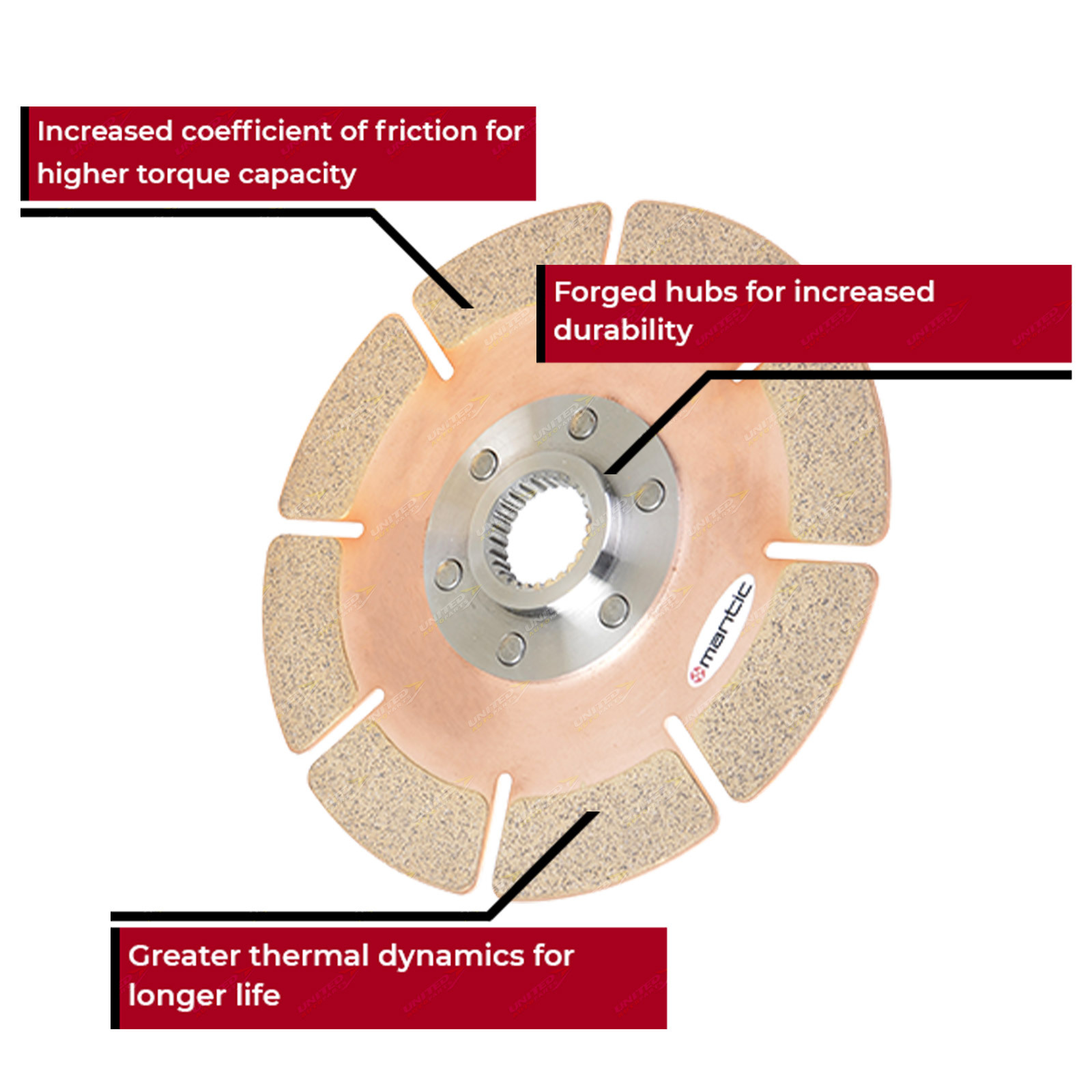

Clutch plate
Concentric slave cylinder
Solid Mass Flywheel (SMF)
Clutch Alignment Tool
Spigot Bearing

Parameter :
Clutch Plate Dimensions:300 x 26T x 29.0
Torque Capacity:"Peak: 792Nm, Rated: 633Nm"
Flywheel Spec:Flat

Suit : Holden Commodore VT VU VX VY VZ Crewman Monaro V2 VZ

Features

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Suit :

Make	Model	Engine	Series	Year
Holden	Commodore	5.7 Ltr, V8 GEN III, 225kw	VT Series II, 6 Speed, 6/99-10/00	1999-2000
Holden	Commodore	5.7 Ltr, V8 GEN III, 225kw	VU, 6 Speed, 1/01-9/02	2001-2002
Holden	Commodore	5.7 Ltr, V8 GEN III, 225kw	VX, 6 Speed, 8/00-9/02	2000-2002
Holden	Commodore	5.7 Ltr, V8 GEN III, 225kw	VY, 6 Speed, 9/02-7/04	2002-2004
Holden	Commodore	5.7 Ltr, V8 GEN III, 250kw	VZ, 6 Speed, 8/04-1/06	2004-2006
Holden	Commodore	6.0 Ltr MPFI, Gen 4 (LS2), 260kw	VZ, 6 Speed, 2/06-7/06	2006-2006
Holden	Crewman	5.7 Ltr MPFI, 225kw	Crew Cab Utility, VY, 6 Speed, 9/03-7/04	2003-2004
Holden	Crewman	5.7 Ltr MPFI, 235kw	Crew Cab Utility, VZ, 6 Speed, 9/05-7/06	2005-2006
Holden	Monaro	5.7 Ltr, V8 GEN III, 225kw	V2 Series I CV8, 6 Speed, 10/01-11/02	2001-2002
Holden	Monaro	5.7 Ltr, V8 GEN III, 235kw	V2 Series II CV8, 6 Speed, 12/02-7/03	2002-2003
Holden	Monaro	5.7 Ltr, V8 GEN III, 245kw	V2 Series III CV8, 6 Speed, 8/03-8/04	2003-2004
Holden	Monaro	5.7 Ltr, V8 GEN III, 260KW	VZ CV8, 6 Speed, 9/04-12/05	2004-2005

Street Clutch Kit Includes:

High Clamp Load
ER2 Pressure Plate
Organic Clutch Disc
Clutch Release Bearing Or CSC
Spigot Bearing
Clutch Aligning Tool
Optional Flywheel & Bolt Kit

1. Mantic Stage1 ER2 Organic

This clutch kit is specifically designed for the street performance market. The high torque capacity cover assembly's pressure plate is manufactured from Spheroidal Graphite casting material, which has a yield strength 300% higher than standard castings. The materials microstructure also improves heat dispersion. In addition, the Mantic Stage 1 features our patented groove design, ER2, CNC machined on the friction face of the pressure plate. Our stage 1 clutch system is capable of transmitting more torque than a standard clutch kit. This overall torque capacity increase has been achieved via higher clamp loads, increased Mean Effective Radius courtesy of the ER2 designed pressure plate, improved heat displacement and use of a high coefficient of friction organic material on the clutch disc. The clutch disc features organic facing material of both sides of the clutch disc making the stage one clutch system the most driver friendly option in our range.

2.Clutch Kit Advantage

Mantic Stage1 clutch kit cover assemblies feature the patented ER2 Groove Design, which is a unique pattern CNC machined on the friction face of the pressure plate. This groove has been specifically designed to increase the Mean Effective Radius of the pressure place and assist in heat dissipation. The increase in the Mean Effective Radius of the cover assembly gives a significant increase in the torque capacity.

3.Clutch Kit Benifit

You can trust in an Australian engineered Mantic Clutch;
- SFI Approved Parts
- ISO9001 Quality Certified
- Dynamometer Tested
- Field Tested On The Street And Track
- Improved Torque Capability
- Lower MOI (Moment Of Inertia) Options

4.About Clutch Industries

Mantic Clutch is the performance clutch division of Clutch Industries (CI) which is a full service clutch manufacturer, manufacturing clutch kits, clutch cover assemblies, clutch plates and flywheels. With more than 60 years of Australian design, development and manufacturing experience, we have become the largest and most experienced clutch manufacturer in Australia. We are uniquely placed in terms of both experience and capabilities to provide the widest range of professionally engineered products in the market today.
Mantic Clutch is known for its bold innovation, through identifying our core competencies, we have been able to leverage our strengths and compete successfully in both Australia and overseas markets. An extensive Research and Development (R&D) department with highly experienced engineering and innovation capabilities enabling us to differentiate ourselves from competitors in both product and services.
