Mantic STAGE 2 Clutch Kit & Flywheel CSC for Holden Commodore VT II VU VX VY VZ

Calculate Shipping

Local Pickup - $0.00
Pickup from Sydney Warehouse

Australia Post-Eparcel - $0.00
Australia Post Parcel Post

Australia Express Post - $0.00

Description

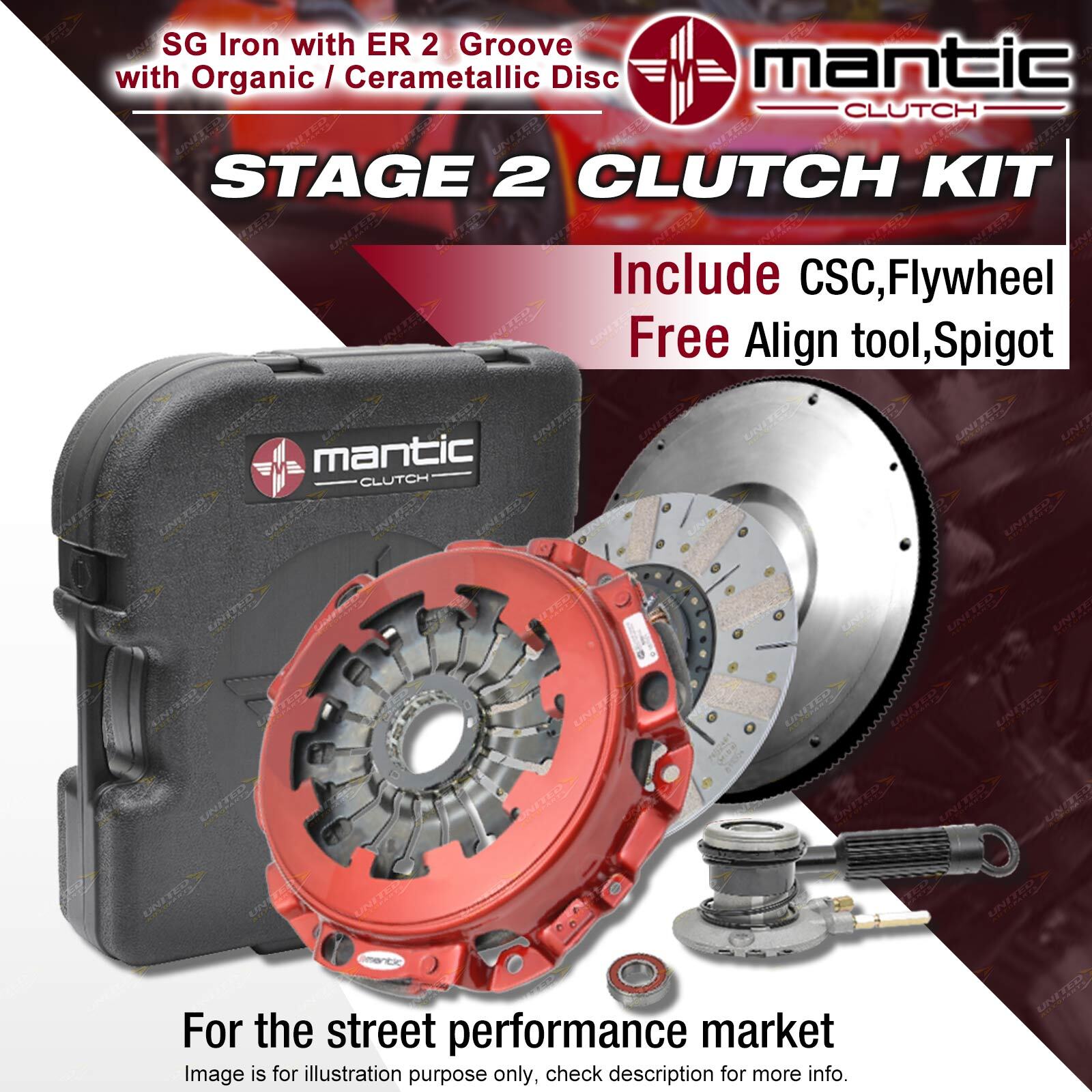

Contents : Mantic STAGE 2 Clutch Kit

Clutch Kit Include :
MANTIC ER2 Heavy Duty Cover Assembly
Organic / Cerametallic (OC) Clutch Plate For Increased Torque capacity featuring High Performance Engineered and Manufactured Friction Material
Concentric Slave Cylinder
Solid Mass Flywheel (SMF)
Clutch Alignment Tool
Spigot Bearing

Clutch Material : SG Iron with ER 2 Groove with Organic / Cerametallic Disc

Parameter :
Clutch plate dimensions (mm): 300 x 26T x 29.0
Flywheel: Flat
Spigot: RSB590
Align tool: CAT191

Suit : Holden Commodore VT II VU VX VY VZ

Features

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Suit :

Make	Model/Submodel	Engine	Series	Output	Trans	Year
Holden	Commodore VT Series II	5.7 Ltr	V8 GEN III	225kw	6 Speed	06/1999-10/2000
Holden	Commodore VU	5.7 Ltr	V8 GEN III	225kw	6 Speed	01/2001-09/2002
Holden	Commodore VX	5.7 Ltr	V8 GEN III	225kw	6 Speed	08/2000-09/2002
Holden	Commodore VY	5.7 Ltr	V8 GEN III	225kw	6 Speed	09/2002-07/2004
Holden	Commodore VZ	5.7 Ltr	V8 GEN III	250kw	6 Speed	08/2004-01/2006
Holden	Commodore VZ	6.0 Ltr MPFI	Gen 4 (LS2)	260kw	6 Speed	->07/2006

Street Clutch Kit Includes:

High Clamp Load
ER2 Pressure Plate
Dual Friction Organic/Cerametallic Clutch Disc
Clutch Release Bearing Or CSC
Spigot Bearing
Clutch Aligning Tool
Optional Flywheel & Bolt Kit

1. Mantic Stage2 Dual Organic/Cerametallic Disc

Unique combinations of Organic and Cerametallic friction materials combine to produce increased torque capacity, while maintaining excellent driveability. The result is a higher torque capacity than a stage 1 kit, and better drivability than stage 3 kit. The stage 2 kit offers a high torque capacity cover assembly, plus a Spheroidal Graphite (SG Iron) casting with ER2 Technology for maximum strength and higher torque capacity. The clutch disc features an organic friction material on the ER2 pressure plate side of the disc, combined with cerametallic friction material on the flywheel side.

2.Clutch Kit Advantage

Mantic Stage2 clutch kit cover assemblies feature the patented ER2 Groove Design, which is a unique pattern CNC machined on the friction face of the pressure plate. This groove has been specifically designed to increase the Mean Effective Radius of the pressure place and assist in heat dissipation. The increase in the Mean Effective Radius of the cover assembly gives a significant increase in the torque capacity.

3.Clutch Kit Benifit

You can trust in an Australian engineered Mantic Clutch;
- SFI Approved Parts
- ISO9001 Quality Certified
- Dynamometer Tested
- Field Tested On The Street And Track
- Improved Torque Capability
- Lower MOI (Moment Of Inertia) Options

4.About Clutch Industries

Mantic Clutch is the performance clutch division of Clutch Industries (CI) which is a full service clutch manufacturer, manufacturing clutch kits, clutch cover assemblies, clutch plates and flywheels. With more than 60 years of Australian design, development and manufacturing experience, we have become the largest and most experienced clutch manufacturer in Australia. We are uniquely placed in terms of both experience and capabilities to provide the widest range of professionally engineered products in the market today.
Mantic Clutch is known for its bold innovation, through identifying our core competencies, we have been able to leverage our strengths and compete successfully in both Australia and overseas markets. An extensive Research and Development (R&D) department with highly experienced engineering and innovation capabilities enabling us to differentiate ourselves from competitors in both product and services.
