Mantic Undampened Clutch Kit MOI for Holden Commodore VT VU VX VY VZ Crewman VY

Calculate Shipping

Local Pickup - $0.00
Pickup from Sydney Warehouse

Australia Post-Eparcel - $0.00
Australia Post Parcel Post

Australia Express Post - $0.00

Description

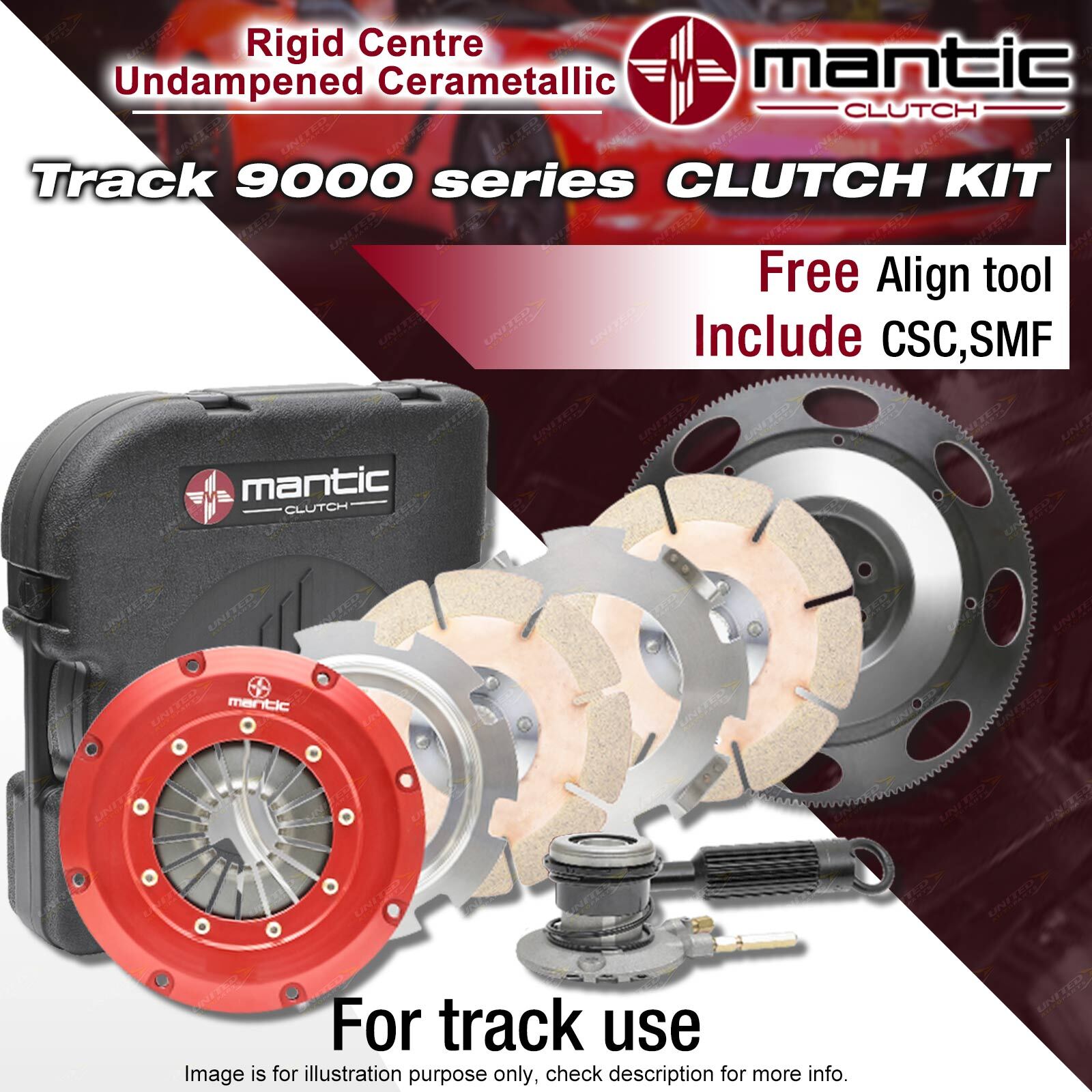

Contents : Mantic Track 9000 series Clutch Kit

Clutch Kit Include :
Mantic Aluminium Billet Cover Assembly
Twin Cerametallic Clutch Plates(No Cushion Non Sprung - Track Use Only)
Concentric Slave Cylinder
Billet Machined Solid Mass Flywheel (SMF) with Bolt Kit
Clutch Alignment Tool

Clutch Dics : Twin Disc

Clutch Material : Rigid Centre Undampened Cerametallic

Parameter :
Clutch plate dimensions (mm): 225 x 26T x 29.0
Flywheel: Flat
Spigot: RSB590
Align tool: CAT191

Suit : Holden Commodore VT VU VX VY VZ Crewman VY

Features

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Please note at the moment our couriers can only deliver to business addresses, if you put a residential address we'll contact you for a business address for FREIGHT items. We can get it dropped at nearby depots for collection if that is more convenient.
Calculated shipping price at checkout is for Metro Brisbane, Sydney, Melbourne ONLY. If you are out of these areas either contact us for freight quote or we will call you prior to shipping for the extra freight charge.

Suit :

Make	Model/Submodel	Engine	Series	Output	Trans	Year
Holden	Commodore VT Series II	5.7 Ltr	V8 GEN III	225kw	6 Speed	06/1999-10/2000
Holden	Commodore VU	5.7 Ltr	V8 GEN III	225kw	6 Speed	01/2001-09/2002
Holden	Commodore VX	5.7 Ltr	V8 GEN III	225kw	6 Speed	08/2000-09/2002
Holden	Commodore VY	5.7 Ltr	V8 GEN III	225kw	6 Speed	09/2002-07/2004
Holden	Commodore VZ	5.7 Ltr	V8 GEN III	250kw	6 Speed	08/2004-01/2006
Holden	Commodore VZ	6.0 Ltr MPFI	Gen 4 (LS2)	260kw	6 Speed	->07/2006
Holden	Crewman VY	5.7 Ltr MPFI		225kw	6 Speed	09/2003-07/2004
Holden	Crewman VZ	5.7 Ltr MPFI		235kw	6 Speed	09/2005-07/2006

Sport Twin Disc Clutch Kit Includes:

Low Weight Aluminium Cover
SG Iron Pressure Plate
Twin Rigid Centre Undampened Cerametallic Clutch Disc
Optional Clutch Release Bearing Or CSC
Clutch Aligning Tool
Optional Flywheel & Bolt Kit

1. Mantic Track 9000 series Twin Rigid Centre Undampened Cerametallic Disc

The rigid centre, undampened cerametallic disc, is the most aggressive level in the Mantic 9000 range. Designed for pure performance, the engagement is sudden, limiting the chance of slippage. It is recommended for track use only.
Available in the Mantic 9000 Series (9"/ 230mm diameter), Mantic 7000 Series (7.25" / 184mm diameter) and the Mantic 5000 Series (5.5" / 140mm diameter) the track twin rigid centre undampened cerametallic plate can hold over 1000Nm of torque.
All direct fit kits include a lighten steel flywheel which along with the aluminium cover, provide a light weight solution that helps increase acceleration.
The Mantic 9000 series is a 9" (230mm) diameter multiple application clutch system. Available in twin and triple disc configurations with four different plate options. It offers up to 1106ft Ibs (1500Nm) of torque drive, with low MOI (Moment of Inertia) for superior performance. The 9000 series is available as a modular kit as well as in many popular direct fit applications.

2.Mantic Track Series feature:

You can trust in an Australian engineered Mantic Clutch;
- Lower Moment of Inertia(MOI) to increase acceleration
- Dynamometer tested
- Field tested on both street and track
- ISO9001 Quality Certified
- Modular designs as well as many direct fit applications

3.About Clutch Industries

Mantic Clutch is the performance clutch division of Clutch Industries (CI) which is a full service clutch manufacturer, manufacturing clutch kits, clutch cover assemblies, clutch plates and flywheels. With more than 60 years of Australian design, development and manufacturing experience, we have become the largest and most experienced clutch manufacturer in Australia. We are uniquely placed in terms of both experience and capabilities to provide the widest range of professionally engineered products in the market today.
Mantic Clutch is known for its bold innovation, through identifying our core competencies, we have been able to leverage our strengths and compete successfully in both Australia and overseas markets. An extensive Research and Development (R&D) department with highly experienced engineering and innovation capabilities enabling us to differentiate ourselves from competitors in both product and services.
