PHC Clutch Kit for Suzuki APV Swift SF416 Vitara Escudo LB11 TA01 TD01 TA02 X90

Calculate Shipping

Local Pickup - $0.00
Pickup from Sydney Warehouse

Australia Post-Eparcel - $0.00
Australia Post Parcel Post

Australia Express Post - $0.00

Description

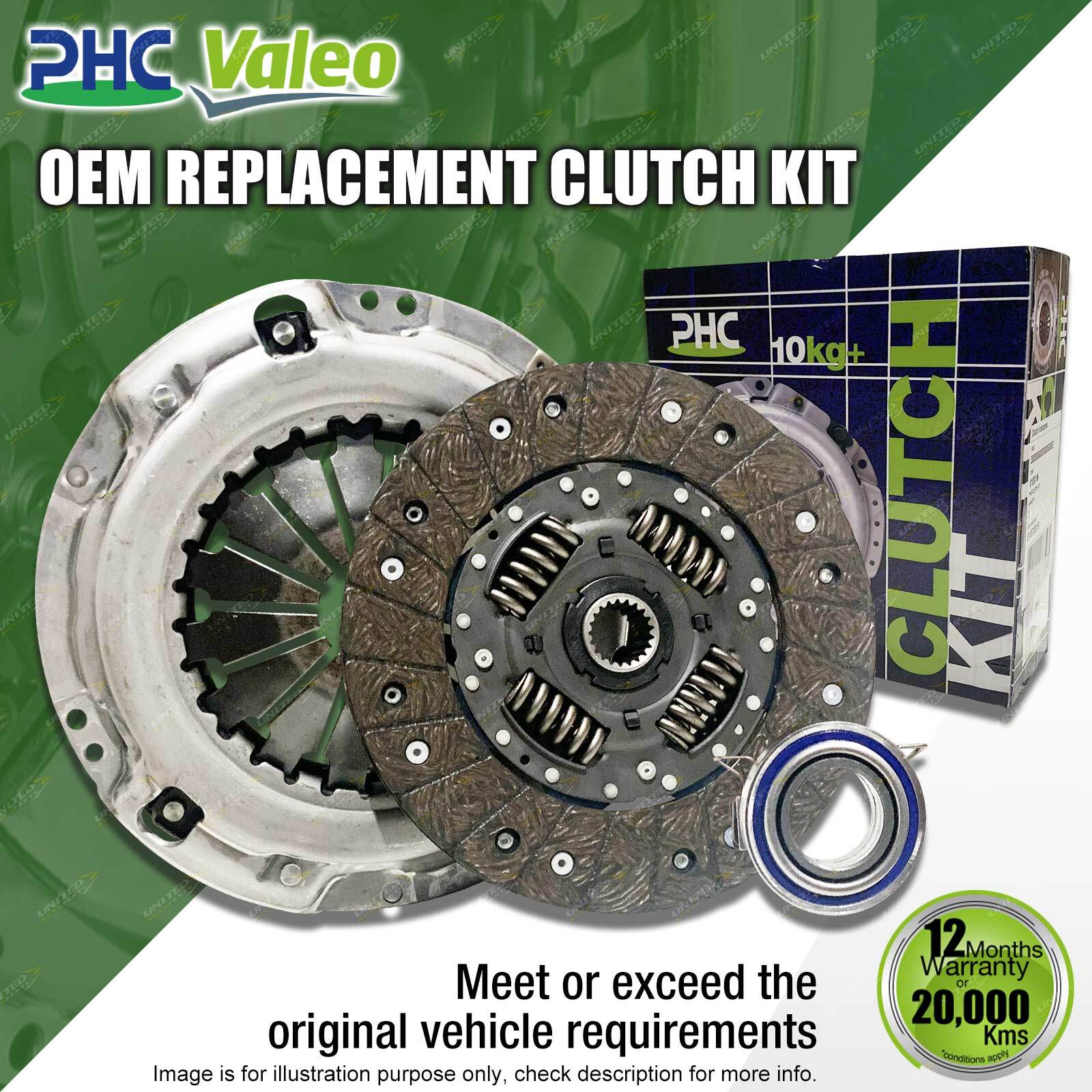

Contents : PHC Clutch Kit

Clutch Kit Include :
Cover assembly
Clutch plate
Release bearing

Parameter :
Clutch plate dimensions (mm): 215 x 20T x 22.8
Flywheel: Flat
Spigot: RSB512
Align tool: CAT146

Suit : Suzuki APV Swift SF416 Vitara Escudo LB11 TA01 TD01 TA02 X90

Features

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Suit :

Make	Model/Submodel	Engine	Series	Output	Trans	Notes	Year
Suzuki	APV	1.6 Ltr MPFI	G16A	68kw	5 Speed	with Cross Shaft Type Fork (Bearing location on fork 70mm)	08/2005-2019
Suzuki	Swift SF416	1.6 Ltr	G16A			incl 4WD	06/1989-12/1994
Suzuki	Swift SF416	1.6 Ltr	G16B			incl 4WD	06/1989-12/1994
Suzuki	Vitara & Escudo LB11	1.6 Ltr EFI	G16B				01/1996-12/1998
Suzuki	Vitara & Escudo TA01	1.6 Ltr	G16A	57kw	5 Speed		01/1989-08/2000
Suzuki	Vitara & Escudo TD01	1.6 Ltr EFI	G16B				08/1991-12/1996
Suzuki	Vitara & Escudo TD01	1.6 Ltr	G16A	57kw	5 Speed		01/1989-08/2000
Suzuki	Vitara TA02	1.6 Ltr	G16B				01/1994-12/1999
Suzuki	X90	1.6 Ltr	G16BA	71kw			04/1996-05/1998

1.PHC Standard Clutch Kit

Designed and manufactured to replace the clutch system installed as Original Equipment, a PHC standard replacement clutch kit is the reliable choice. Each component has been thoroughly tested and developed for a specific application. This range provides a Quality Assured replacement part that will meet or exceed the requirements of the original unit.

2.Product Advantage

Each component has been thoroughly tested and developed for specific field applications within the Australian and New Zealand market place. Maximum durability
More aggressive clutch feel
Meet Or Exceed Original Equipment clutch
Friction clutch plate with low wear, high coefficient of friction

3.About PHC

After 60 years of experience in developing and manufacturing clutch kits for OEM and Aftermarket use, we are a trusted source for a complete range of Clutch Kits suited to your vehicle.
