PHC HD Cushioned Clutch Kit for Toyota Corolla AEA10 AEA20 NZE121 140 ZZE122 123

Calculate Shipping

Local Pickup - $0.00
Pickup from Sydney Warehouse

Australia Post-Eparcel - $0.00
Australia Post Parcel Post

Australia Express Post - $0.00

Description

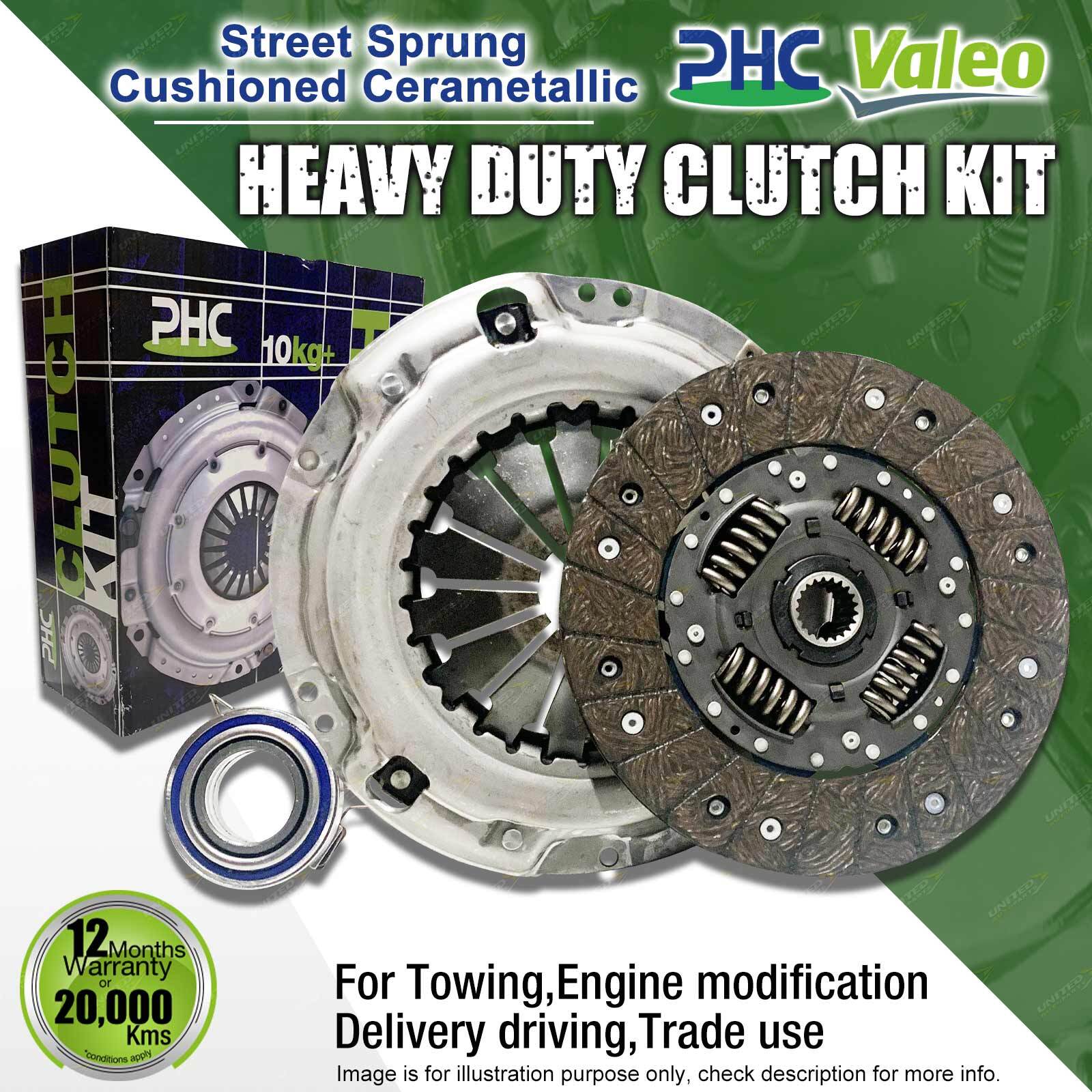

Contents : PHC Heavy Duty Clutch Kit

Clutch Kit Include :
Heavy duty cover assembly with 20% (typical) increase in torque capacity / clamp load
Upgraded sprung cushioned cerametallic clutch plate with high torque capacity friction material (Suitable for mix of street and motorsport use reduced friction point will result in more sudden clutch engagement)
Release bearing

Clutch Material : Street Sprung Cushioned Cerametallic

Parameter :
Clutch Plate Dimensions:215 x 21T x 23.8
Torque Capacity: Peak 305Nm, Rated 244Nm
Flywheel Spec:0.5

Suit : Toyota Corolla AEA10 AEA20 NZE121 140 ZZE122 123

Features

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Suit :

Make	Model/Submodel	Engine	Series	Output	Trans	Notes	Year
Toyota	Corolla AEA10	1.6 Ltr	4A-FE				01/1997-04/1998
Toyota	Corolla AEA20	1.8 Ltr	7A-FE				01/1997-11/2001
Toyota	Corolla NZE121	1.5 Ltr	1NZ-FE	81KW		New Zealand Only	08/2000-09/2006
Toyota	Corolla NZE140	1.5 Ltr	1NZ-FE			New Zealand Only	01/2007-12/2008
Toyota	Corolla ZZE122	1.8 Ltr DOHC	1ZZ-FE		5 Speed		05/2004-04/2007
Toyota	Corolla ZZE123	1.8 Ltr DOHC	2ZZ-FE		6 Speed		01/2001-04/2004
Toyota	Corolla ZZE123	1.8 Ltr	2Z-ZGE	141KW		New Zealand Only	08/2000-09/2006

1.PHC Heavy Duty Clutch Kit

Designed and manufactured to replace the clutch system installed as Original Equipment, a Heavy Duty replacement clutch kit features a torque capacity increase due to a higher clamp load. Each component has been thoroughly tested and developed for a specific application. This range provides a Quality Assured replacement part that will meet or exceed the requirements of the original unit.

2.Product Feature

PHC Heavy Duty Clutch Kits are manufactured with a typical 20% increase in clamp load, resulting in an equivalent increase in torque capacity. Increasing clamp load by more than 20% can put the vehicles hydraulic system under stress, significantly reduce clutch system life and result in very high clutch pedal actuation effort.

3.About PHC

After 60 years of experience in developing and manufacturing clutch kits for OEM and Aftermarket use, we are a trusted source for a complete range of Clutch Kits suited to your vehicle.
