PHC HD Solid Clutch Kit for Toyota Hiace LH103 LH113 LH125 148 162 172 184 194

Calculate Shipping

Local Pickup - $0.00
Pickup from Sydney Warehouse

Australia Post-Eparcel - $0.00
Australia Post Parcel Post

Australia Express Post - $0.00

Description

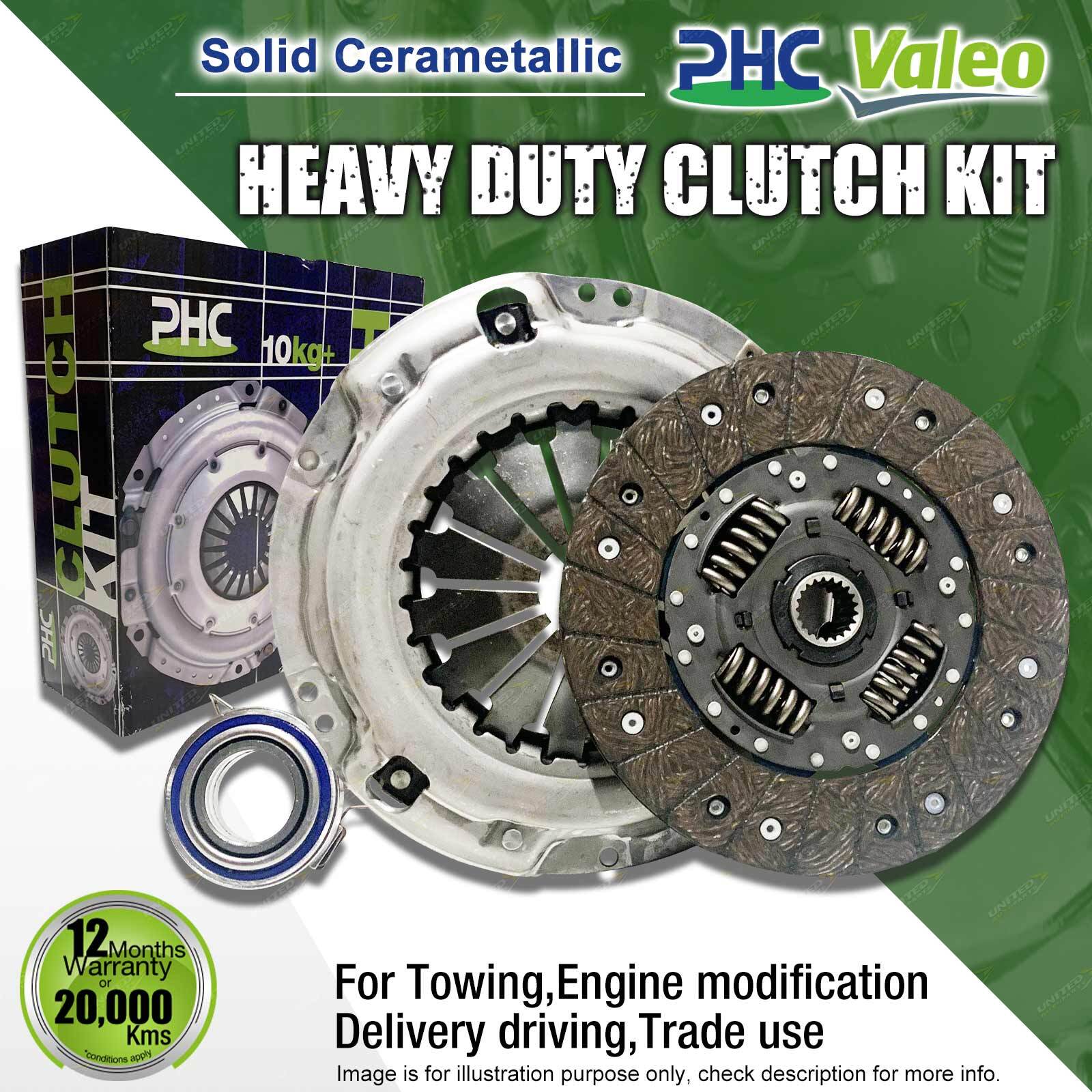

Contents : PHC Heavy Duty Clutch Kit

Clutch Kit Include :
Heavy duty cover assembly with 20% (typical) increase in torque capacity / clamp load
Upgraded rigid cerametallic clutch plate with very high torque capacity friction material (NOT suitable for street use as the friction point is very sudden)
Release bearing

Clutch Material : Solid Cerametallic

Parameter :
Clutch Plate Dimensions:236 x 21T x 29.0
Torque Capacity: Peak 386Nm, Rated 309Nm
Flywheel Spec:0.5

Suit : Toyota Hiace LH103 LH113 LH125 148 162 172 184 194

Features

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Suit :

Make	Model/Submodel	Engine	Series	Output	Year
Toyota	Hiace LH103 (incl 4WD)	2.8 Ltr Diesel	3L		08/1993-08/1998
Toyota	Hiace LH113 (incl 4WD)	2.8 Ltr Diesel	3L		05/1992-08/1998
Toyota	Hiace LH119 (incl 4WD)	2.8 Ltr Diesel	3L		08/1989-01/1992
Toyota	Hiace LH125 (incl 4WD)	2.8 Ltr Diesel	3L	60kw	08/1989-08/1998
Toyota	Hiace LH148	3.0 Ltr Diesel	5L		01/2001-12/2003
Toyota	Hiace LH162	3.0 Ltr Diesel	5L		10/2000-10/2001
Toyota	Hiace LH172	3.0 Ltr Diesel	5L	66kw	10/2000-03/2005
Toyota	Hiace LH177	3.0 Ltr Diesel	5L	66kw	10/2000-03/2005
Toyota	Hiace LH178	3.0 Ltr Diesel	5L		01/1998-12/2004
Toyota	Hiace LH184	3.0 Ltr Diesel	5L		10/2000-12/2005
Toyota	Hiace LH194	3.0 Ltr Diesel	5L		01/2000-12/2005
Toyota	Hiace LXH43	3.0 Ltr Diesel	5L		06/1997-04/2002

1.PHC Heavy Duty Clutch Kit

Designed and manufactured to replace the clutch system installed as Original Equipment, a Heavy Duty replacement clutch kit features a torque capacity increase due to a higher clamp load. Each component has been thoroughly tested and developed for a specific application. This range provides a Quality Assured replacement part that will meet or exceed the requirements of the original unit.

2.Product Feature

PHC Heavy Duty Clutch Kits are manufactured with a typical 20% increase in clamp load, resulting in an equivalent increase in torque capacity. Increasing clamp load by more than 20% can put the vehicles hydraulic system under stress, significantly reduce clutch system life and result in very high clutch pedal actuation effort.

3.About PHC

After 60 years of experience in developing and manufacturing clutch kits for OEM and Aftermarket use, we are a trusted source for a complete range of Clutch Kits suited to your vehicle.
