Whiteline Rear Subframe Align Lock Kit Bush for Nissan 180SX 200SX 240SX 300ZX

Calculate Shipping

Local Pickup - $0.00
Pickup from Sydney Warehouse

Australia Post-Eparcel - $0.00
Australia Post Parcel Post

Australia Express Post - $0.00

Description

Whiteline Alignment Products

DYNAMIC & STATIC - Typically used when discussing wheel alignment and geometry. By this, Whiteline are referring to the difference in alignment angles between a stationary and a moving vehicle. That is, the same vehicle will typically have different caster, camber and toe readings when it is moving compared to when the alignment was done in static form in the workshop.

Whiteline puts a great deal of emphasis on the dynamic geometry so rigorous road testing is essential to ensure that the predictions are valid.

Camber
Caster
Toe
"Anti" Geometry

Whiteline boasts a worldwide reputation as a leading manufacturer of replacement, enhancement and performance suspension components that deliver significant gains in vehicle balance, steering precision, grip levels and outright driving performance.

What makes Whiteline different?

Unique Products - Whiteline is the only brand globally to market a full range of undercar chassis and suspension components that complements your spring and damper/ shock absorber set up. Simply, it is a tuned system and not a collective of various brands. We provide sway bar & lowering springs solutions.

Activate more grip - Engineered to activate more grip for improved handling and outright performance, Whiteline products are rigorously tested on the track to provide unrivalled street performance!

No compromise - Advanced designs, material technologies and extensive testing ensures minimal effects on ride quality and maximum effects on handling precision.

Solutions - From automotive repair workshops to race teams, Whiteline offers proven product solutions to suspension and handling problems for many of the worlds vehicle platforms.

Features

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Content :

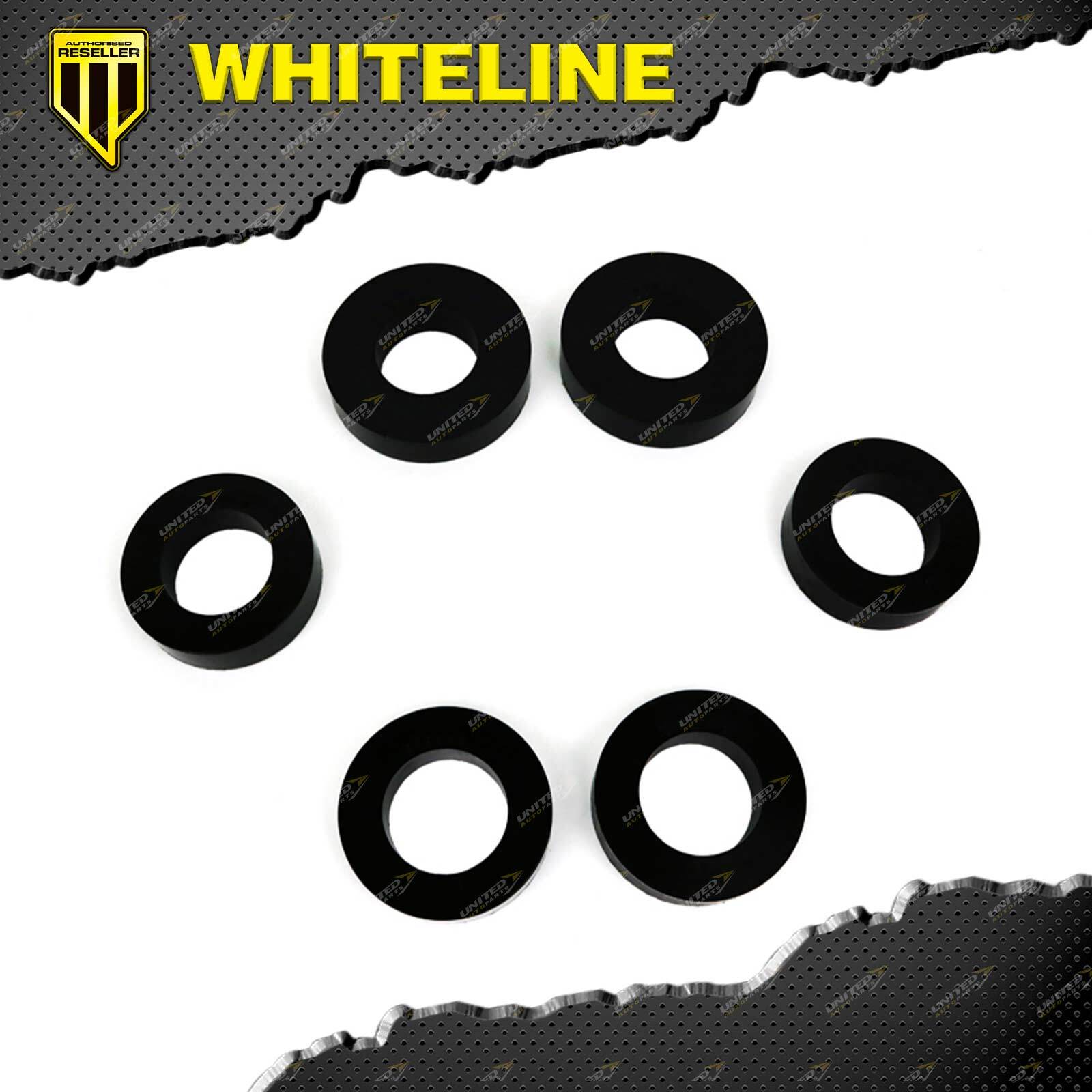

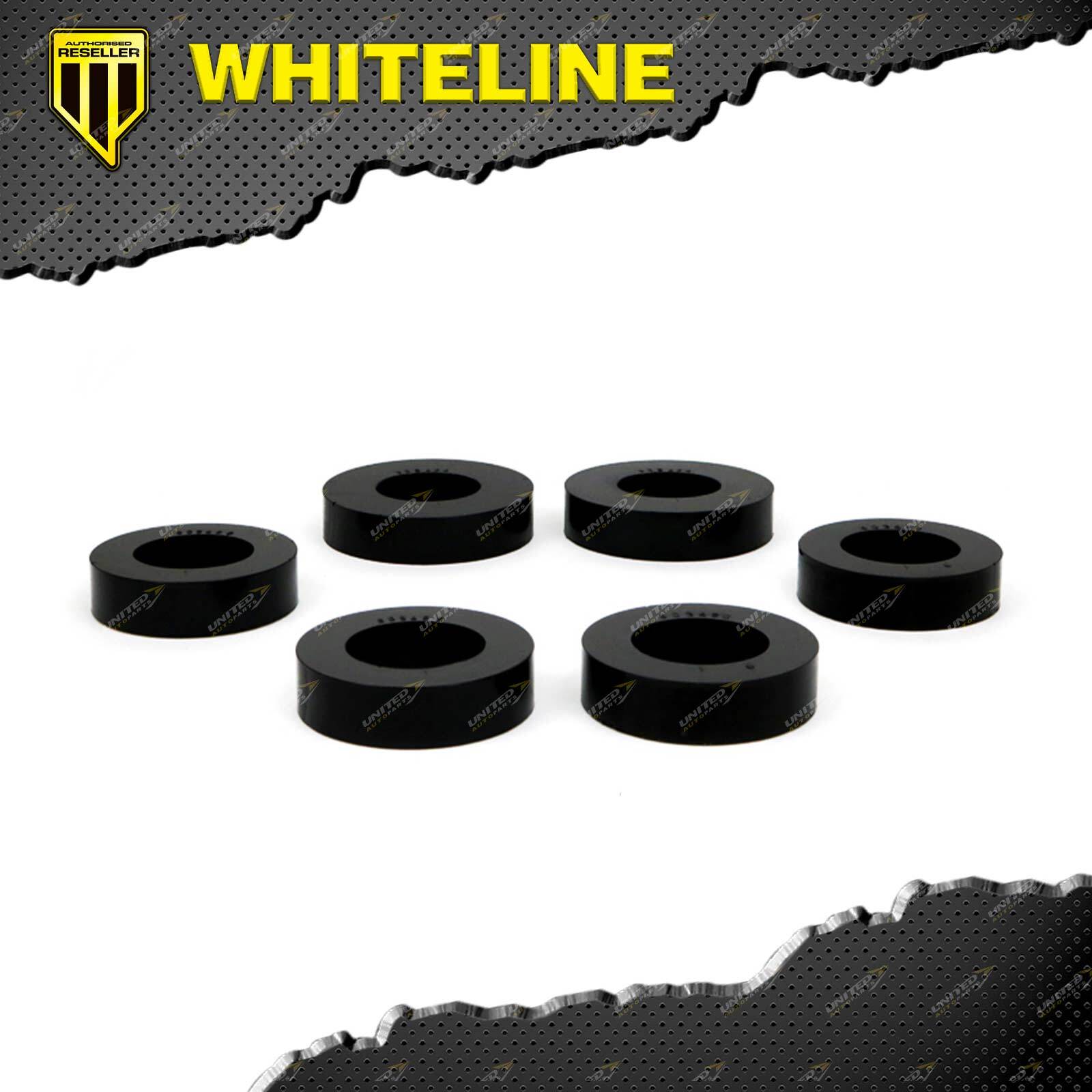

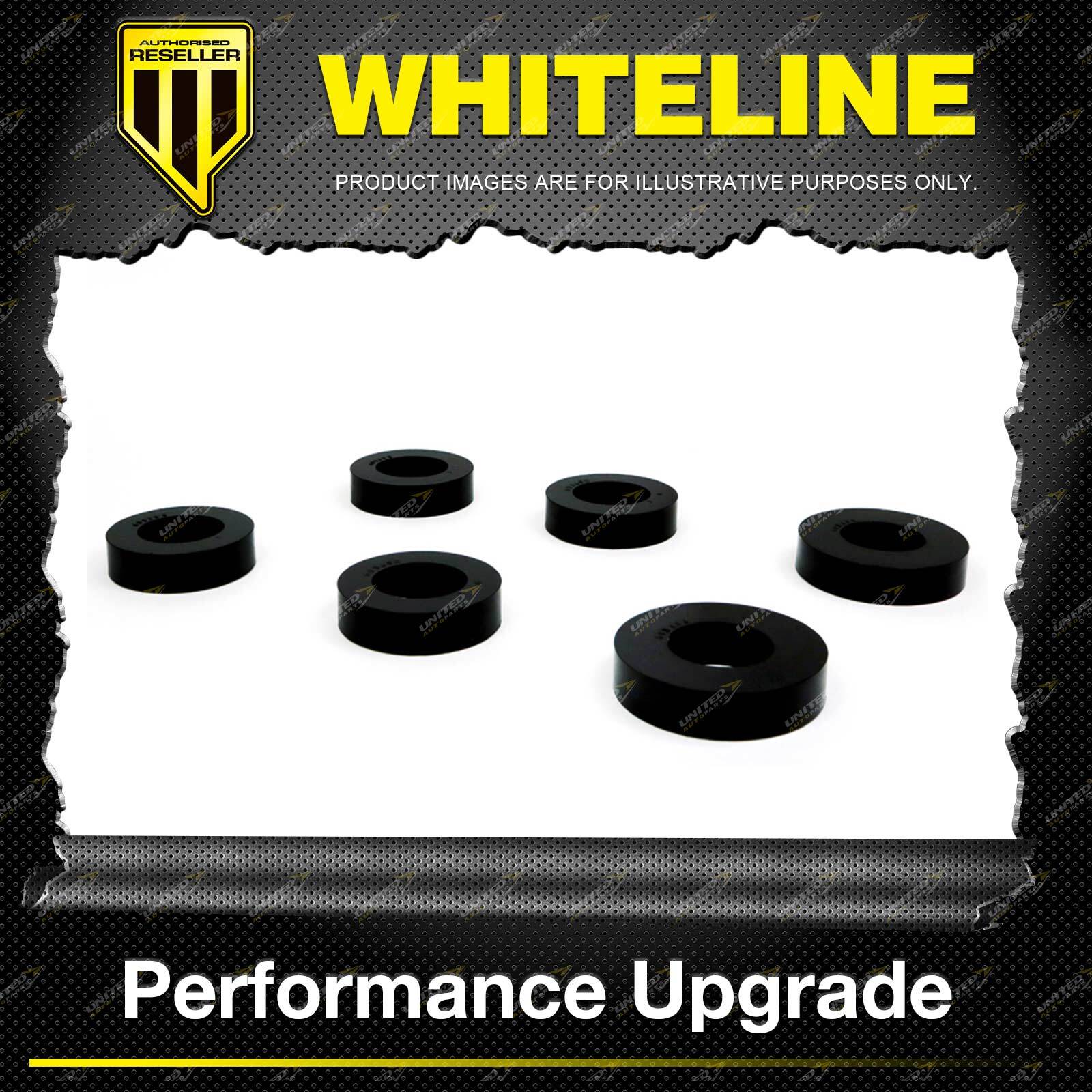

Whiteline Rear Subframe - Align And Lock Kit Bushing (Anti-Squat)

Quantity In Package : 6

Warranty : 3 Year / 60,000Kms

Kit Contents : 6 Bushings, Install Guide, Grease

Suit :

Nissan 180Sx S13 4CYL 1984-1996 (See Notes 540)
Nissan 200Sx S14 S15 4CYL 7/1994-2002 (See Notes 540)
Nissan 240Sx S13 S14 4CYL 1989-1998 (See Notes 540)
Nissan 300Zx Z32 6CYL 7/1989-3/1997 (See Notes 540)
Notes 540 : Allows diff angle change and subframe lock - suited for OE bushings

Kit Specifications :

Bush Qty : 6

OD 1 : 80.2 mm ; OD 2 : 69.4 mm ; OD 3 : 69.6 mm

ID 1 : 39.4 mm ; ID 2 : 40.6 mm ; ID 3 : 40.6 mm

L 1 : 18.2 mm ; L 2 : 18.2 mm ; L 3 : 18.5 mm

Alignment Type : Anti Squat

Adjustment Type : Spacer

On Car Adjustable : No

Adjustment Notes : Allows Diff Angle Change & Subframe Lock

This easy to install kit is designed to change the inclination of the rear sub-frame whilst reducing bushing compliance. By locating the rings in different planes it possible to induce rear squat (maximum traction) or anti-squat (drift) properties. This product may induce increased NVH levels.

Features

Engineered to alter/ eliminate unwanted bump steer, optimising the vehicles steering characteristics.
Featuring premium anodized alloy materials, Whiteline alloy products are anodized providing a long-lasting protective barrier to corrosion and wear but they look great too.
Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self lubrication for optimum friction management.
Specially bonded design for optimised strength typically required in high load bearing applications.
Install guide included providing detailed instructions on how to install your new Whiteline purchase.
This Whiteline kit is covered by a 3 Year / 60,000kms warranty.
